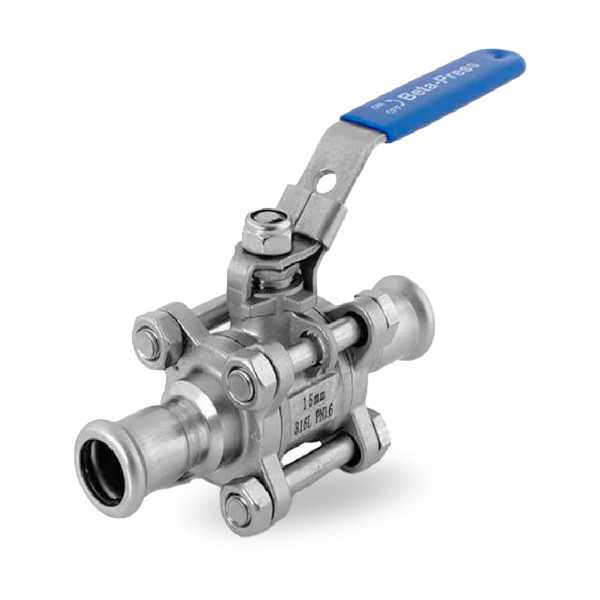

Beta-Press 316L S/S 3 Piece Ball Valve

Size
Please select from the options above.
Quantity
-
+

Beta-Press


A Beta-Press Press-Fit 3 piece ball valve made from top quality 316L grade stainless steel that comes complete with EPDM seals/O-rings as standard and compatiable with M profile press jaws.


The Press-Fit 3 piece ball valve is extremely durable and corrosion resistant making it ideal for hygienically demanding applications such as drinking water.



Standards & Accreditations:

WRAS Approved
DVGW Standard


Applications:

- Potable Water

- Heating

- Cooling

- Sprinkler systems

- Oil

- Compressed air/nitrogen/argon/c
arbon dioxide


Material: Stainless Steel


Grade: 316/L (1.4404) UNS S31603 to standard EN10088 with Leak Before Press (LBP) design.


Seal/O-Ring: Fittings incorporate a black EPDM (Ethylene Propylene Diene Monomer) O-ring.


Technical Data:

ISO 5211 direct mount

Full bore with stainless steel lever and plastic cover

Operating temperature -20°C - +120°C

Maximum Working Pressure 16Bar from -20°C to 120°C



For use with: M-profile press tools - eradicating the need for soldering and hot work.
