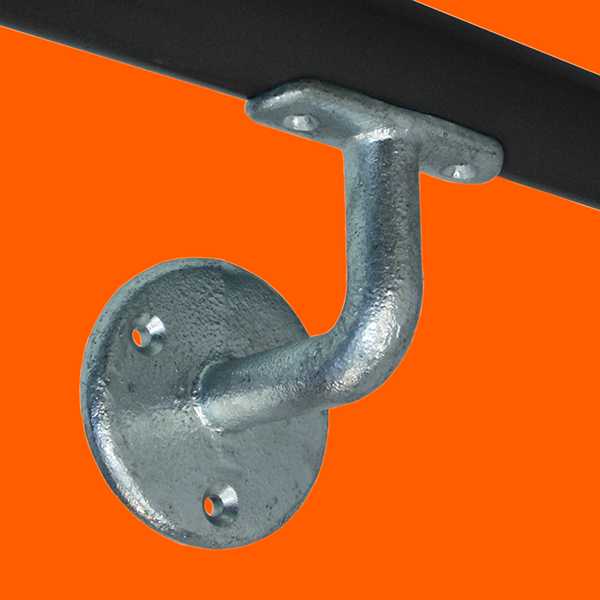

The Wall Bracket has two holes to secure the handrail suitable for self tapping screws or pop rivets and three wall fixing holes suitable for 6mm diameter countersunk screws.
Designed to satisfy the requirements of part 'M' of the Building Regulations 2004.
Standard: BS EN 1562:1997, grub screw to BS EN 1563:1997Material: Main body - malleable iron, screw - ductile iron
Hot dipped galvanised to BS EN ISO 1461:1999.
Suitable for use with steel tube to BS EN 10255 and BS1387.
Size Conversion
Kee Klamp® - Size 7
Tubeclamps™ - Size C
Q Clamp® - Size 3
Intercamp® - C42
| Fitting No. | Fitting Size | Metric Tube Size | Imperial Tube Size |
| G20 | 3/4" | 20mm | 3/4" |
| G25 | 1" | 25mm | 1" |
| G32 | 1 1/4" | 32mm | 1 1/4" |
| G40 | 1 1/2" | 40mm | 1 1/2" |
| G50 | 2" | 50mm | 2" |
