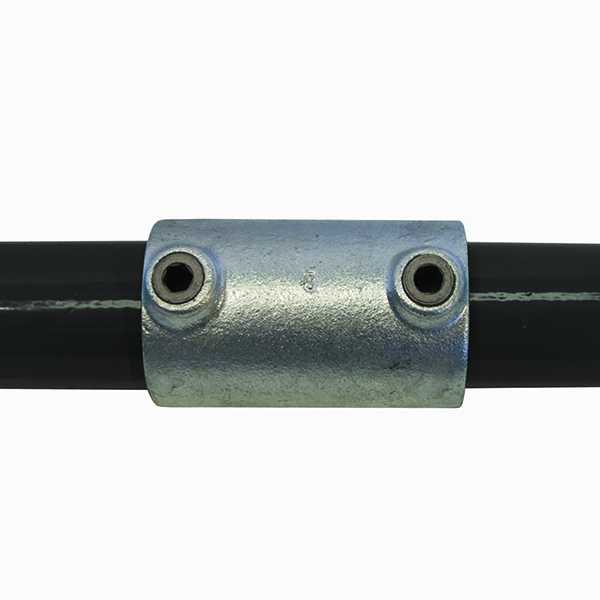

The Sleeve Joint is designed to provide an in line joint between two tubes of the same diameter.
The G20 26.9mm range of tube clamps are designed to fit 26.9mm OD (3/4" NB) tube.
The smallest size in our range of tube clamps, the G20 range is mostly used for niche applications and constructions including lightweight clothing racks and lightweight frames.
Standard: BS EN 1562:1997, grub screw to BS EN 1563:1997
Material: Main body - malleable iron, screw - ductile iron
Hot dip galvanised to BS EN ISO 1461:1999.
Suitable for use with steel tube to BS EN 10255 and BS1387.
Size Conversion
Kee Klamp® - Size 5
Tubeclamps™ - Size A
Q Clamp® - Size 1
Intercamp® - A27
| Fitting No. | Fitting Size | Metric Tube Size | Imperial Tube Size |
| G20 | 3/4" | 20mm | 3/4" |
| G25 | 1" | 25mm | 1" |
| G32 | 1 1/4" | 32mm | 1 1/4" |
| G40 | 1 1/2" | 40mm | 1 1/2" |
| G50 | 2" | 50mm | 2" |
