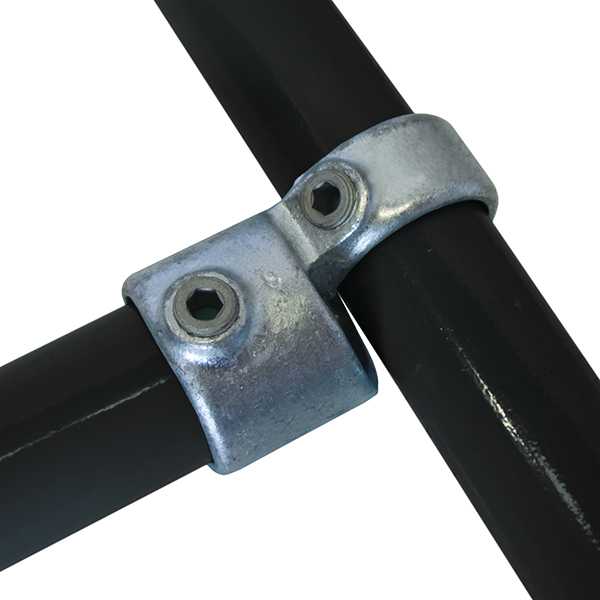

The Short Tee Swivel fittings are normally used in pairs to allow corner joints of any angle between 90° and 180°. The fitting can also be used on staircases with a C02 and C03 fitting to accommodate landings used in conjunction with a short piece of tube and a C65 Plastic Stop End. When ordering, please specify the number of fittings required and not the number of pairs.
The G25 33.7mm range of tube clamps are designed to fit 33.7mm OD (1" NB) tube.
The G25 range is commonly used for some handrail applications and is now being regularly seen in many high street clothing stores as display rails and frames as a coat hanger fits perfectly over the 33.7mm OD tube.
Standard: BS EN 1562:1997, grub screw to BS EN 1563:1997
Material: Main body - malleable iron, screw - ductile iron
Hot dipped galvanised to BS EN ISO 1461:1999.
Suitable for use with steel tube to BS EN 10255 and BS1387.
Size Conversion
Kee Klamp® - Size 6
Tubeclamps™ - Size B
Q Clamp® - Size 2
Intercamp® - B34
| Fitting No. | Fitting Size | Metric Tube Size | Imperial Tube Size |
| G20 | 3/4" | 20mm | 3/4" |
| G25 | 1" | 25mm | 1" |
| G32 | 1 1/4" | 32mm | 1 1/4" |
| G40 | 1 1/2" | 40mm | 1 1/2" |
| G50 | 2" | 50mm | 2" |
