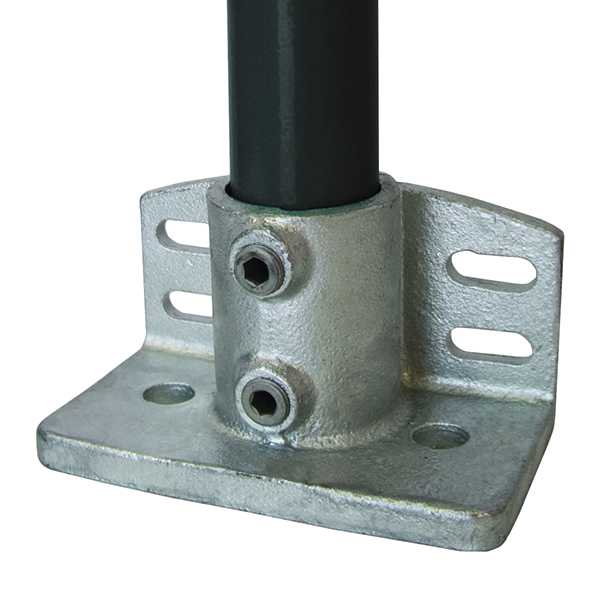

The Base Flange with Integrated Toeboard is ideal for guardrailing and balustrading applications where the addition of a toeboard is required. The side plates have slotted holes to allow for a° of sideways movement for ease of installation. It is recommended that this fitting be used in accordance with maximum post centre dimensions.
The G32 42.4mm range of tube clamps are designed to fit 42.4mm OD (1 1/4" NB) tube.
The G32 range is a popular choice for most handrail applications, barriers and medium weight racking systems.
p>Standard: BS EN 1562:1997, grub screw to BS EN 1563:1997Material: Main body - malleable iron, screw - ductile iron
Hot dipped galvanised to BS EN ISO 1461:1999.
Suitable for use with steel tube to BS EN 10255 and BS1387.
Size Conversion
Kee Klamp® - Size 7
Tubeclamps™ - Size C
Q Clamp® - Size 3
Intercamp® - C42
| Fitting No. | Fitting Size | Metric Tube Size | Imperial Tube Size |
| G20 | 3/4" | 20mm | 3/4" |
| G25 | 1" | 25mm | 1" |
| G32 | 1 1/4" | 32mm | 1 1/4" |
| G40 | 1 1/2" | 40mm | 1 1/2" |
| G50 | 2" | 50mm | 2" |
