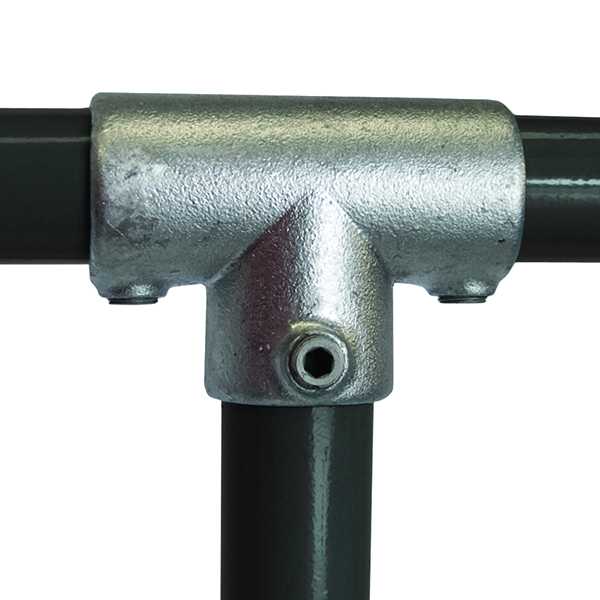

The Long Tee is designed to provide a butt joint between two tubes at right angles to each other. Often used for railing ends and tops. It allos the through tube to be joined inside the fitting.
The G40 48.3mm range of tube clamps are designed to fit 48.3mm OD (1 1/2" NB) tube.
The G40 is the conventional scaffold size of tube clamps and is suitable for guardrail applications, safety barriers, trolley bays and racking systems.
Standard: BS EN 1562:1997, grub screw to BS EN 1563:1997
Material: Main body - malleable iron, screw - ductile iron
Hot dipped galvanised to BS EN ISO 1461:1999.
Suitable for use with steel tube to BS EN 10255 and BS1387.
Size Conversion
Kee Klamp® - Size 8
Tubeclamps™ - Size D
Q Clamp® - Size 4
Intercamp® - D48
| Fitting No. | Fitting Size | Metric Tube Size | Imperial Tube Size |
| G20 | 3/4" | 20mm | 3/4" |
| G25 | 1" | 25mm | 1" |
| G32 | 1 1/4" | 32mm | 1 1/4" |
| G40 | 1 1/2" | 40mm | 1 1/2" |
| G50 | 2" | 50mm | 2" |
