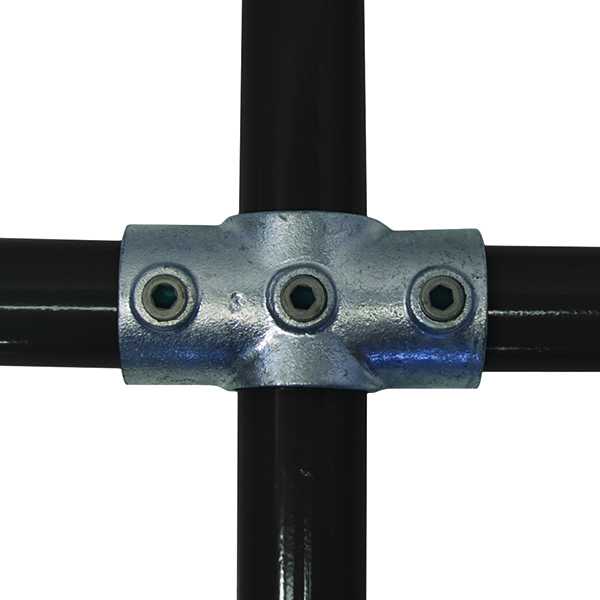

The Two Socket Cross fitting provides the midrail joint for handrail and other structures. It is recommended that the handrail post is continuous through the fitting.
The G50 60.3mm range of tube clamps are designed to fit 60.3mm OD (2" NB) tube.
The G50 is the largest of our 5 sizes is particularly suitable for heavy weight constructions such as heavy duty trolley bays, barriers and industrial areas that are liable to come in contact with forklift trucks/other vehicles and constructions which are required to carry heavy loads such as racking.
Standard: BS EN 1562:1997, grub screw to BS EN 1563:1997
Material: Main body - malleable iron, screw - ductile iron
Hot dipped galvanised to BS EN ISO 1461:1999.
Suitable for use with steel tube to BS EN 10255 and BS1387.
Size Conversion
Kee Klamp® - Size 9
Tubeclamps™ - Size E
Q Clamp® - Size 5
Intercamp® - E60
GUIDE TO TUBE SIZE REQUIREDFitting No. | Fitting Size | Metric Tube Size | Imperial Tube Size |
|
G20 | 3/4" | 20mm | 3/4" |
G25 | 1" | 25mm | 1" |
G32 | 1 1/4" | 32mm | 1 1/4" |
G40 | 1 1/2" | 40mm | 1 1/2" |
G50 | 2" | 50mm | 2" |
