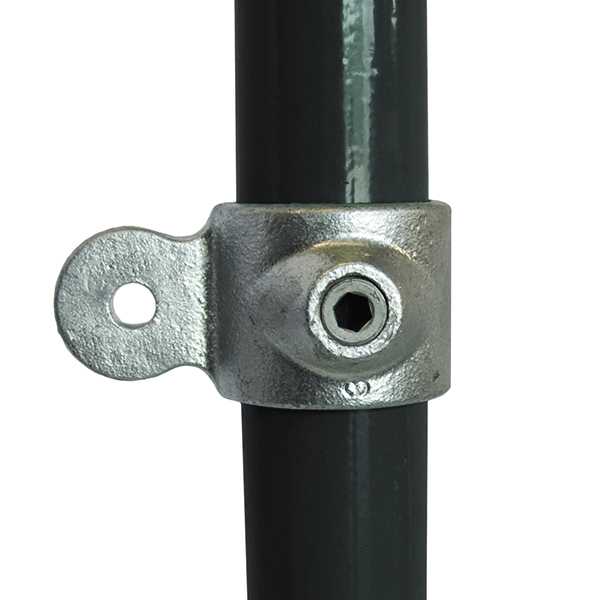

The Male Swivel is designed as part of the swivel combination group of fittings. It can be used on its own for use with a shackle and chain or with the C36 fitting to mount rails at an angle for slopes. It can also be used for attaching flat sheets or boards to a structure. It is also available assembled with the C36 fitting as a C45 Single Swivel Combination.
The G50 60.3mm range of tube clamps are designed to fit 60.3mm OD (2" NB) tube.
The G50 is the largest of our 5 sizes is particularly suitable for heavy weight constructions such as heavy duty trolley bays, barriers and industrial areas that are liable to come in contact with forklift trucks/other vehicles and constructions which are required to carry heavy loads such as racking.
Standard: BS EN 1562:1997, grub screw to BS EN 1563:1997
Material: Main body - malleable iron, screw - ductile iron
Hot dipped galvanised to BS EN ISO 1461:1999.
Suitable for use with steel tube to BS EN 10255 and BS1387.
Size Conversion
Kee Klamp® - Size 9
Tubeclamps™ - Size E
Q Clamp® - Size 5
Intercamp® - E60
| Fitting No. | Fitting Size | Metric Tube Size | Imperial Tube Size |
| G20 | 3/4" | 20mm | 3/4" |
| G25 | 1" | 25mm | 1" |
| G32 | 1 1/4" | 32mm | 1 1/4" |
| G40 | 1 1/2" | 40mm | 1 1/2" |
| G50 | 2" | 50mm | 2" |
