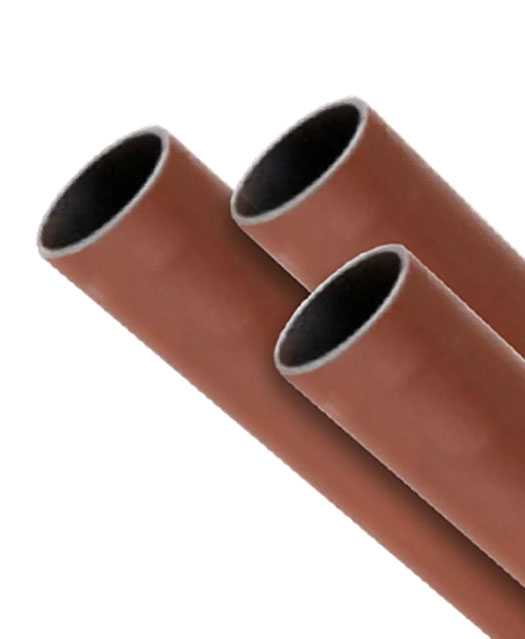

A dual certified seam welded heavy gauge red oxide tube to EN BS 10255 (previously BS1387) and BS EN 10217-1. Supplied finished with plain ends. Available in 6.4m full random lengths (FRL) or 3.2m half random lengths (HRL).
Size: | 3/4" (20mm) Nominal Bore |
Length: | Full Random Length (approx. 6.4m) |
Outer Diameter: | 26.9mm/1.062" |
Wall Thickness: | 3.25mm/0.128" (Heavy Grade) |
Max Operating Pressure: | Water - 42 bar, Air/steam - 21 bar |
Standard: | EN10255 (BS1387) and EN10217-1 |
Material: | Mild steel |
Tube Type: | Seam welded tube |
Finish: | Red oxide primer painted finish |
Approvals: | Pressure Equipment Directive (PED) 2014/68/EU |
