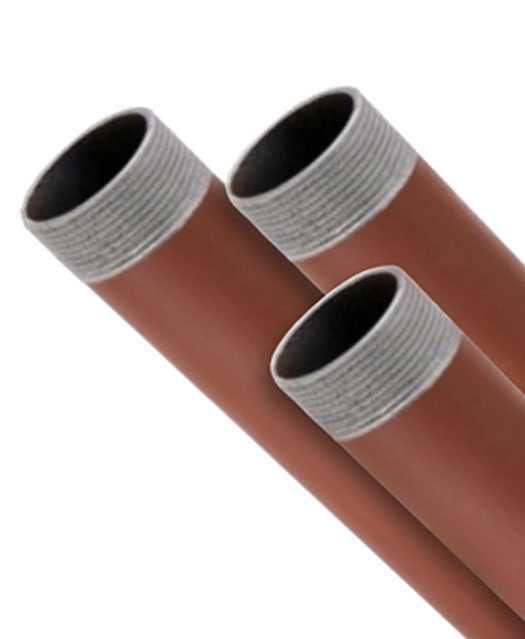

A dual certified seam welded heavy gauge red oxide tube to EN BS 10255 (previously BS1387) and BS EN 10217-1. Supplied finished with screwed ends and a socket. Available in 6.4m full random lengths (FRL) or 3.2m half random lengths (HRL).
Size: | 1 1/2" (40mm) Nominal Bore |
Length: | Half Random Length (approx. 3.2m) |
Outer Diameter: | 48.3mm/1.906" |
Wall Thickness: | 4.05mm/0.160" (Heavy Grade) |
Max Operating Pressure: | Water - 35 bar, Air/steam - 17 bar |
Standard: | EN10255 (BS1387) and EN10217-1 |
Material: | Mild steel |
Tube Type: | Seam welded tube |
Joints: | Male BSPT taper thread to BS EN 10226-1 |
Finish: | Red oxide primer paint finish |
Approvals: | Pressure Equipment Directive (PED) 2014/68/EU |

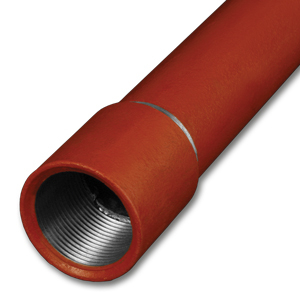

Info: | Female BSPP parallel threaded socket supplied |
